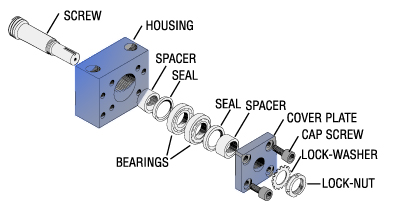

For quick installation, Bestek can
assemble Ball Screw End Supports to your ball screw. With precision
angular contact bearings sealed in a durable steel housing,
these supports provide high axial rigidity required for ball
screw and custom screw applications.
Contact Us.
Features:
Available For:
High Accuracy
Easy to Apply
Custom Assemblies
To eliminate the cost and complexity of sub assembly, component
alignment and design configuration, Bestek offers ball screw assemblies
complete with machined ends, bearing supports, screw, nut and flange
for your convenience.
Universal Mount
Universal-mount bearing
supports have two precision mounting surfaces. Mounting
holes are pre-drilled for face or foot mounting.
Flange Mount
Flange-mount bearing
supports have a compact envelope and a precision
pilot diameter and flange face for accurate alignment.
In addition to through-hole installation, mounting
holes are sized to be tapped. Flange-Mount piloted
mounting surface can be oriented toward or away
from the drive end.
